Radial emission laser fibers – Ringlight®

The advantages of the Ringlight® laser fiber
Designed and developed by LSO Medical, Ringlight® radial emission laser fibers allow optimal energy diffusion for safer and more efficient ablation:

• SMA 905 fiber connector: reference connector
• Si/Si fiber body for optimal energy transmission
• 360° marking along the length of the fibers for an exact dosage of energy and shrinkage speed.

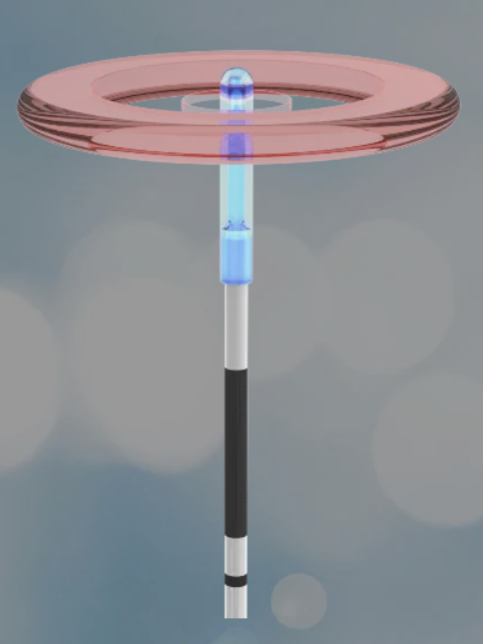

• Fiber tip with radial emission, 360 °: 100 % of the energy is diffused towards the venous wall.
• Encapsulated and rounded fiber tip
  – to reduce the risk of vein perforation
  – ultrasound and easy to locate by ultrasound
• Monitoring Back Reflection, for real-time monitoring of effective delivery at the end of fiber
• Smart card for optimal patient follow-up
• Available in core diameter of 400 μm or 600 μm. High-quality material reduces energy and improves viewing beam transillumination during operation.

Design of the Ringlight® laser fiber

• Total length: 2.5 m
• Indicator 1: removal of the 6-Fr introducer
• Indicator 2: termination of proceedings
• Centimeter and decimeter markings
